Hello everyone, I'm in search of plans to build a wooden carrying case for my lantern.  Or, even a double carrying case.  I'd like to see all ideas.  Please no suggestions for cat litter buckets or 5 gallon buckets, or PVC.  I'd like it to be plywood plans.  Let me know.  Thanks!
Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #2
I'd just like plans or templates so I could make my own!
Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #3
Cool, Thanks Mpars!
cooler

Avatar / Picture

FROM THE LAND OF
ICE AND SNOW

Registered: 06/12/11
Posts: 1,990
Reply with quote  #4











__________________
Collecting Coleman when Coleman was not cool...
Occelli

Avatar / Picture

Senior Member
Registered: 08/28/09
Posts: 104
Reply with quote  #5
http://www.colemancollectorsforum.websitetoolbox.com/post/Homemade-Lantern-Cases-5916764?highlight=wood

Weirdnerd

Squirrel Bait
Registered: 02/08/12
Posts: 3,708
Reply with quote  #6
What I did was : put the lantern on a surface a mark the base, then with a square ruler mark the perimeter ( make sure you take into account the vent) then add the thickness of the walls, and cut two identical pieces ( squares), then put the lantern on one of the squares and measure the height, you may want to put some padding under and over, then cut two pieces opposite to each other, set them and measure the size of the other two sides, once you have the six parts, assemble them with glue/nails/epoxy, whatever you have...I made one sort of custom with honeycomb material, very light weight:






__________________
I have reasons to believe the squirrels are mocking me.....

Werner
backstrapfever

Avatar / Picture

White Gas Junky
Registered: 01/30/12
Posts: 1,698
Reply with quote  #7

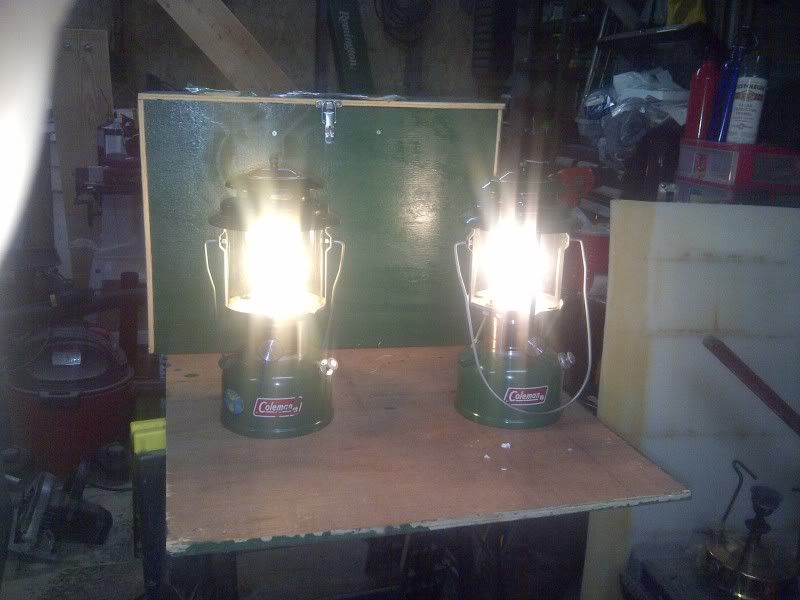

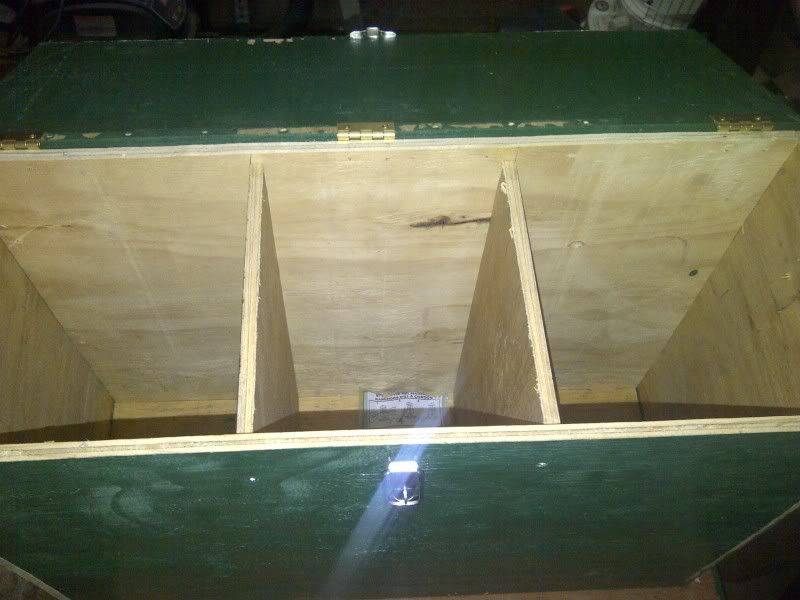

i thought i replied to this but here it goes again i made one for two 220's and a gallon of fuel actually a lot easier that you think here are some pics






Gasman64

Avatar / Picture

Gaseous Maximus
Registered: 11/18/10
Posts: 11,037
Reply with quote  #8
http://colemancollectorsforum.websitetoolbox.com/post/Wooden-carrying-case-plans-5997501
__________________
Steve
ICC #1012
Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #9
Great! Thanks guys!
cooler

Avatar / Picture

FROM THE LAND OF
ICE AND SNOW

Registered: 06/12/11
Posts: 1,990
Reply with quote  #10
Quote:
Originally Posted by mpars
Cooler, I think I remember that one on eBay.


Nope, not this one. I have never purchased a lantern off eBay but I have sold plenty.


__________________
Collecting Coleman when Coleman was not cool...
ColeMAN

Avatar / Picture

STOVE MASTER
Registered: 01/21/12
Posts: 1,360
Reply with quote  #11

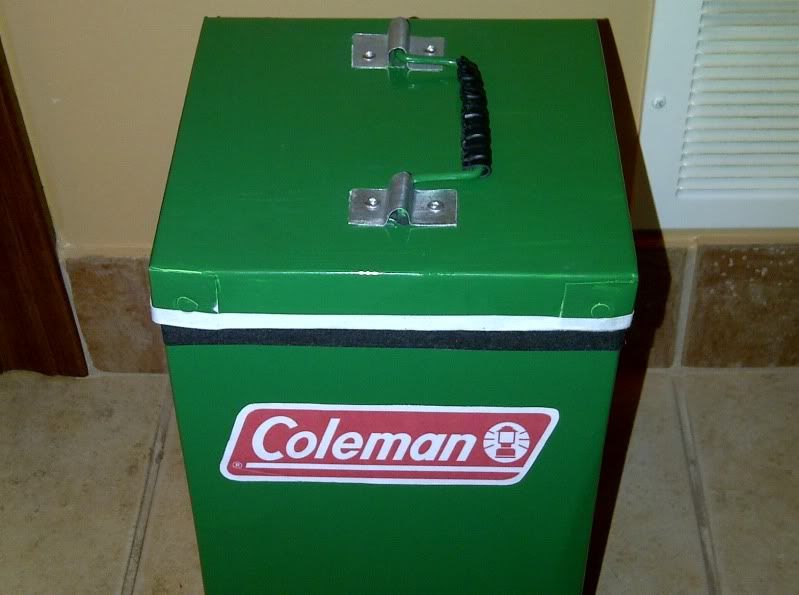

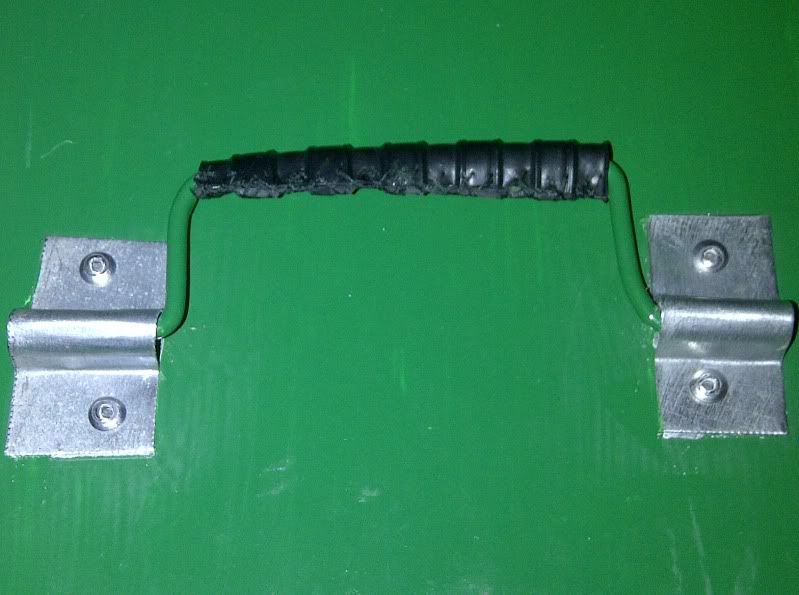

Made with a sheet of galv, some pop rivets, some packing foam I "borrowed" from work, a piece of steel wire and a small piece of rubber carpet for the grip. Everything was bent with a steel ruler and hammer.








__________________
Joe A
Ontario knights of the White Mantle

Birthday Lanterns: 7-91, 10-93
gijills

Malfunction
Assessment Coordinator

Registered: 04/05/10
Posts: 775
Reply with quote  #12

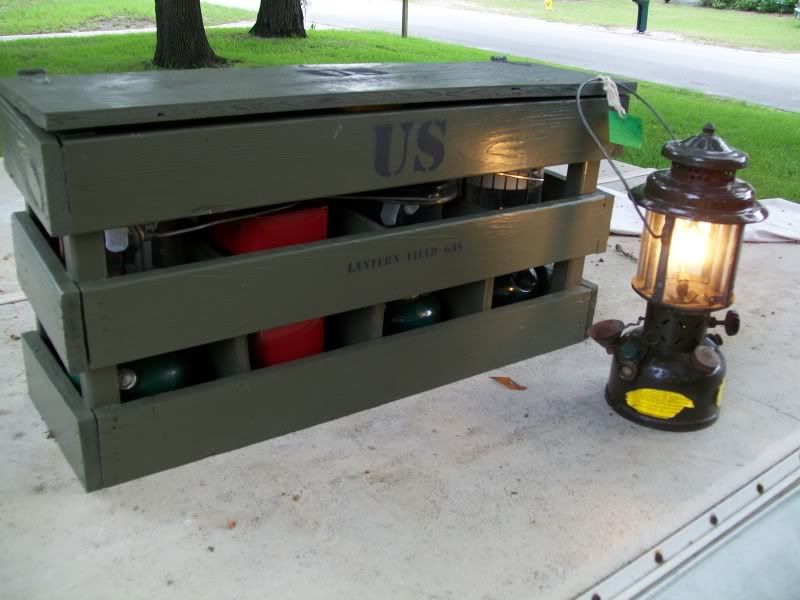

I reenact WW II so here is mine can hold 3 lanterns and can of fuel.



the plans


You can adjust to meet your needs.

Skip
Oldlanternman

Avatar / Picture

Lantern Rescuer
Professional
Mantle Destroyer

Registered: 06/30/12
Posts: 1,558
Reply with quote  #13
Not a very good picture of it, but here's the homemade case I just got along with a 220bx


__________________
-WICKIE SPECIALIST- -Patrick- "Wickie Pat"- I'm not old, the lanterns are! LANTERNS ARE PEOPLE TOO! 275 turd lover syndicate member #0067 ICCC# 1182 There's nothing wrong with having over 300 lanterns and stoves! "Its a disease"
[IMG_20131011_183101_zpsbe4fb235]
-life on a scooter-
fourpz

Avatar / Picture

Over
500 Posts!

Registered: 04/28/10
Posts: 1,573
Reply with quote  #14
Made these with my Son a couple of years ago, they are still holding up well. These are the lanterns that stay in the trailer all the time. I have since added a case that holds a Gallon of fuel, a funnel, 2 x 1lb Propane Bottles (for the BBQ) as well as matches, lighters, a wrench and mantles, sorry no pics of that.






__________________
Brad
Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #15
Great guys!  Thank you for the ideas!
OregonMichael

Avatar / Picture

Made In America, Baby!!!
Registered: 12/11/08
Posts: 3,297
Reply with quote  #16
Quote:
Originally Posted by gijills
I reenact WW II so here is mine can hold 3 lanterns and can of fuel.



the plans


You can adjust to meet your needs.

Skip


That is awesome.  I need to build that for the milspecs.  Maybe build a separate compartment for 520 stoves, too.

mgmlvks

Avatar / Picture

Mike -
Leavenworth

Registered: 04/28/12
Posts: 717
Reply with quote  #17

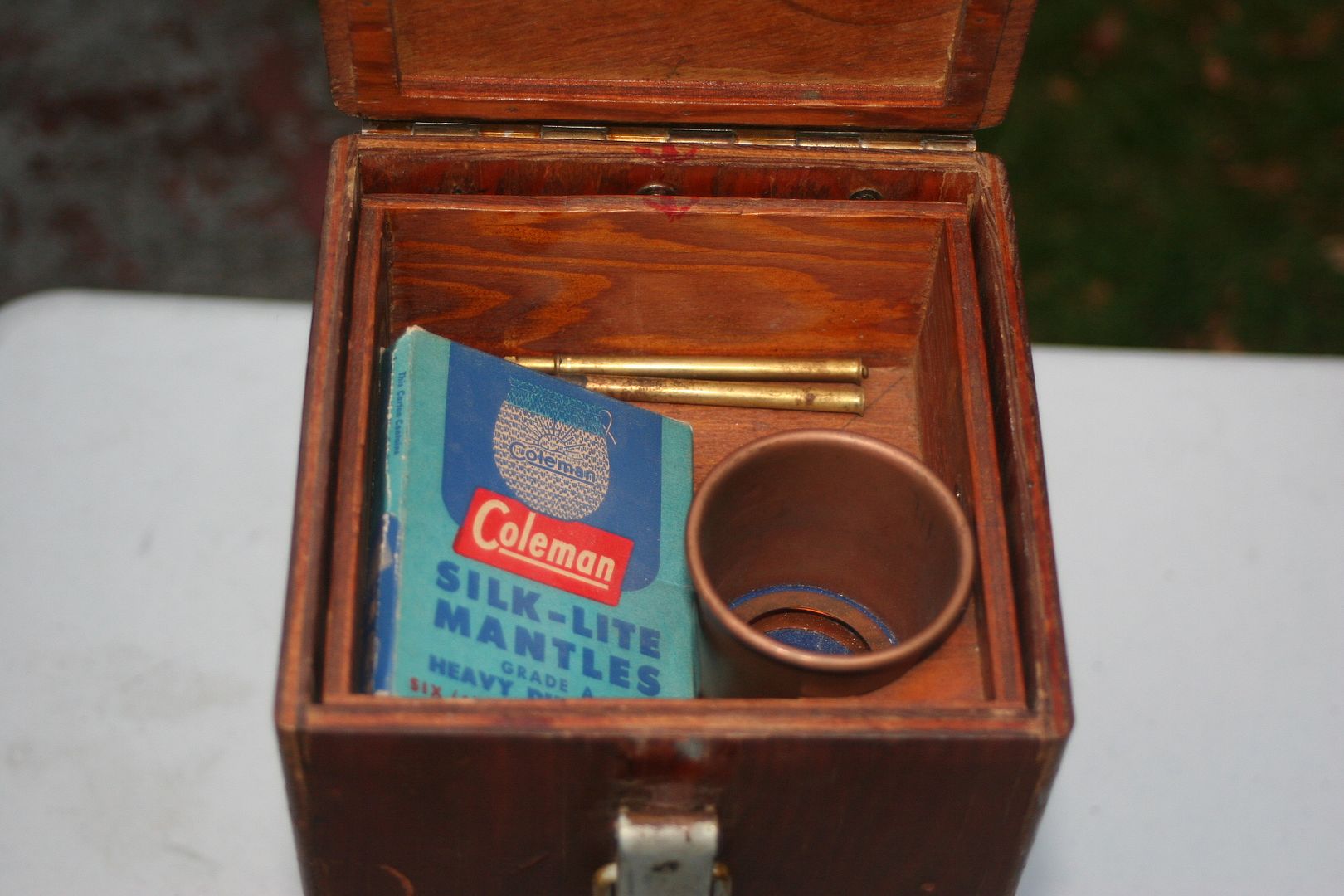

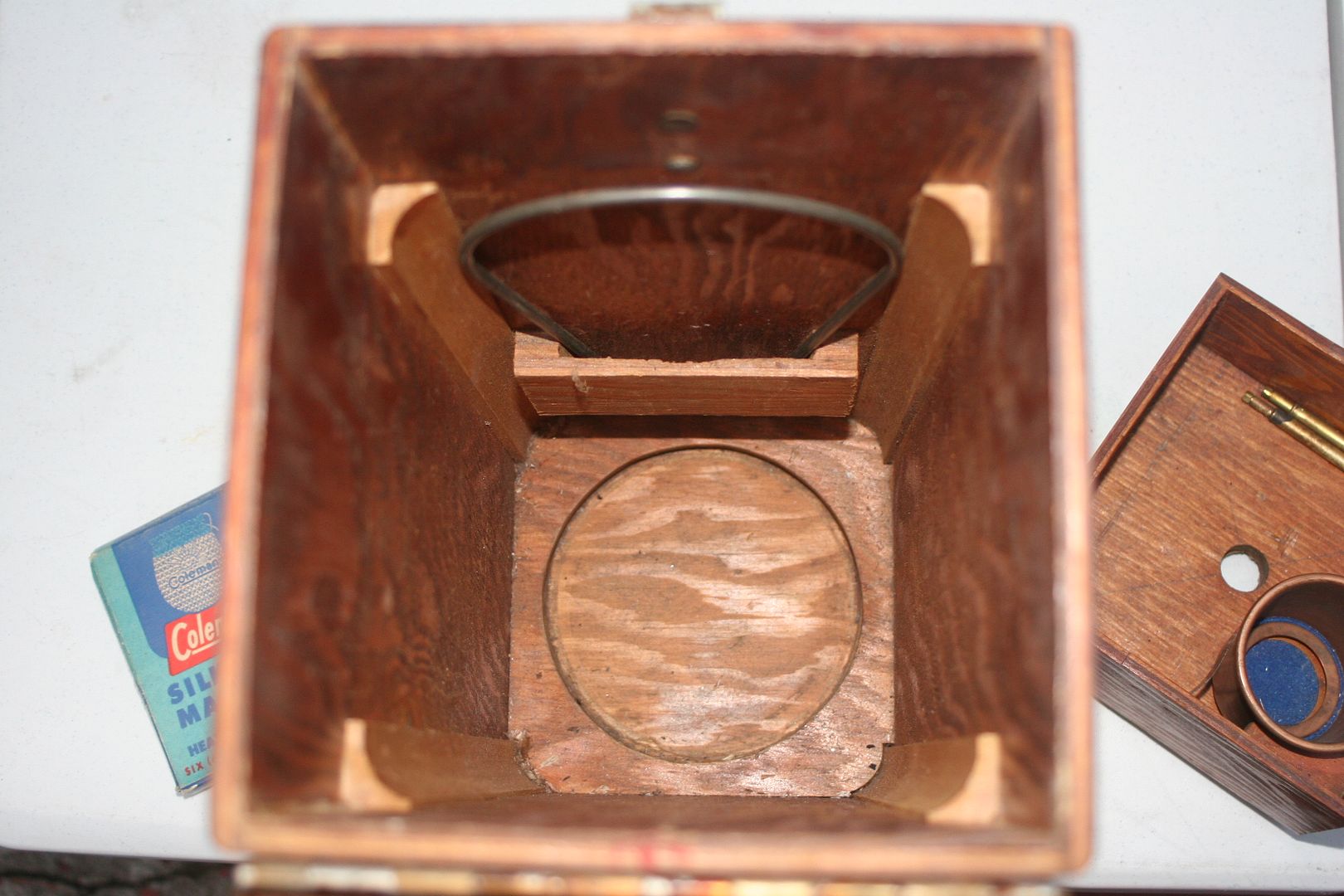

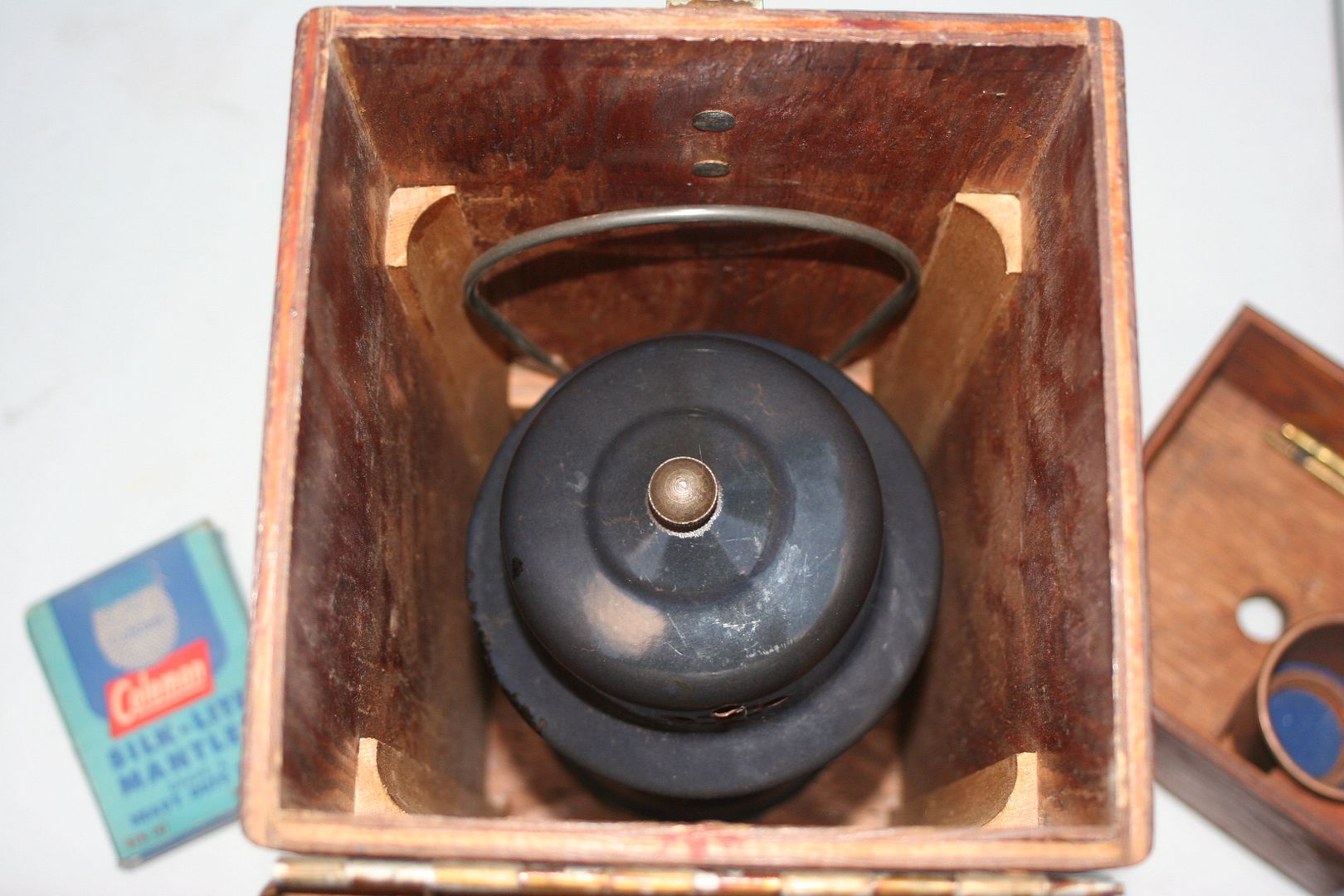

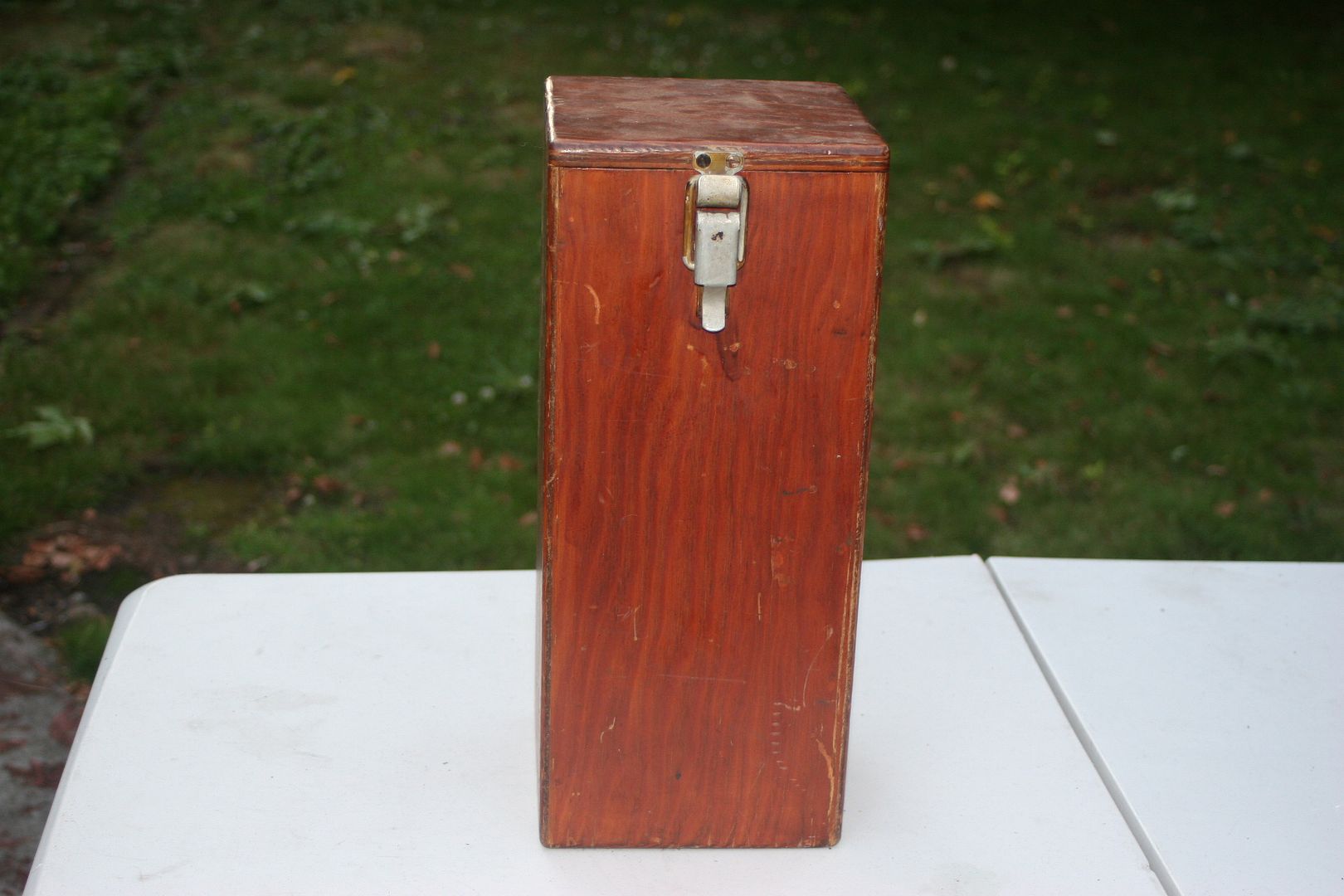

Here is a nice wooden case that has been protecting a nice 220E 5-59 for many yers longer than the 10 I have had it.  I haveb been wanting to sand it and paint - but the straps are nicely attached now - and I am not sure it could be put back together again the same.













__________________
Mike, ICCC member #1156
"In order for the light to shine so brightly, the darkness must be present"
Francis Bacon


Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #18
Excellent!
daisydog

Avatar / Picture

Duke of Stoves
Registered: 12/18/08
Posts: 550
Reply with quote  #19
I've made a number of them for 242's, 220's and a 500 speedmaster.  No plans are necessary.  Take your lantern, get some dimensions on it and just build a box.  I put in a couple of curved pieces in the bottom to receive the fount, a couple of patches of felt to protect the vent from banging and some on the base to protect it.  I also use a patch of foam so when I close it, it holds it in place.  Nickle protective corners and latches can be bought from Woodworkers.  Also as a side bar...the latches from Woodworkers also work for certain stove latches.  I also use rubber bumper type feet underneath each.

Those shown are in leftover mahogany from a boat project, but just about any decent wood will work.  Wall thickness on these is 1/4", with a 3/4" top and base.  I've done them with box joints, but that's unnecessary.  I used a piece of material for the corners as a fillet. The real trick is getting an angled edge between the top and the base, but that's not necessary.

Stain and finish as you want, I used epoxy and auto clear, but then I've got that stuff in the shop all the time.  A small binder clamp attached with a screw and washer works great to hold things like spare mantles in the lid.  Just an idea.  Doug


__________________
White gas.....it's what cooks dinner!
stove museum/teardrop trailers/boats and other projects...
http://s1244.photobucket.com/home/DougHodder
ICCC# 1095
Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #20
Some very nice carrying cases in this thread.  Thanks all for showing them!
__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
Gasman64

Avatar / Picture

Gaseous Maximus
Registered: 11/18/10
Posts: 11,037
Reply with quote  #21
WOW, Doug, you're not just a great restorer of stoves, you make beautiful cases, too!
__________________
Steve
ICC #1012
daisydog

Avatar / Picture

Duke of Stoves
Registered: 12/18/08
Posts: 550
Reply with quote  #22
Thanks Steve....and if you can indulge me for a second....here's the boat that the excess ply came from....I was into building boats before I got into building teardrop trailers.  Sorry if it seems self serving... but I'm pretty proud of it. It's my most involved/ time intensive project.   Doug


__________________
White gas.....it's what cooks dinner!
stove museum/teardrop trailers/boats and other projects...
http://s1244.photobucket.com/home/DougHodder
ICCC# 1095
CrazyCamperGreg

Avatar / Picture

Over
500 Posts!

Registered: 10/21/10
Posts: 1,183
Reply with quote  #23
You should be more than proud of that boat. It is beutiful in fact I think we need to see more pictures of it. Got any pics of it on the water. I have always loved the look of the old wood boats.
__________________
Your wife called she said ''BUY ALL THE GPA'S YOU WANT'' Trust me....

Looking for 5/79 502, 4/80 200A, 11/2000 any, 6/08 any.
a65hoosier

Activity Limited by
the Overseer

Registered: 07/07/12
Posts: 707
Reply with quote  #24

There are alot of ideas for cases here and alot of craftsmen in this group.

Daisydog- Yes, please indulge us with a few more pics of that boat.  That Sir, is a beauty!

cooler

Avatar / Picture

FROM THE LAND OF
ICE AND SNOW

Registered: 06/12/11
Posts: 1,990
Reply with quote  #25
Dang! Those are very nice!

I think we have a winner.

Quote:
Originally Posted by daisydog


__________________
Collecting Coleman when Coleman was not cool...
daisydog

Avatar / Picture

Duke of Stoves
Registered: 12/18/08
Posts: 550
Reply with quote  #26
Pinto...I apologize for walking on your thread, but since someone asked, here's a couple more pics of that boat.  Skip....I really dig the look of the storage boxes you did up, nice "military" appearance!  Doug






__________________
White gas.....it's what cooks dinner!
stove museum/teardrop trailers/boats and other projects...
http://s1244.photobucket.com/home/DougHodder
ICCC# 1095
Pinto509

Coleman
Moocher

Registered: 08/17/12
Posts: 134
Reply with quote  #27
No apologies needed! That boat is amazing!
HillCountry

Avatar / Picture

Little Brother
of the Sun

Registered: 12/03/11
Posts: 3,894
Reply with quote  #28
I love that boat! It reminds me of the old Chris Craft barrel backs. Beautiful! The lantern boxes are gorgeous too!
__________________
Tim - ICCC Member #1217 The Coleman Blues 243's #26
StanDahl

Avatar / Picture

John
Registered: 05/01/10
Posts: 5,511
Reply with quote  #29
There have been a number of topics about wooden cases, but they have been purged. If anything is going to last, it has to be requested to be moved from Just Bull.

I've built a few boxes over the last few years, from rustic to gift boxes for birthday lanterns. Here are some of the nicer ones:



200A on the left, 242 on the right. The red ones were gifted along with birthday lanterns. The 242 boxes were mistakes that had have coves cut along the inside to accommodate the vent. The bail has to be removed too. I made a hole in the lid with a Forsner bit to allow the ball nut to fit. That came about because of another miscalculation. The decal comes from fellow CCF'r Jim Hogg in Canada via eBay.



I made this one to fit two 220 size lanterns and a gallon of fuel. I made a box for tools also. The box fits on top of the gallon of fuel. For some reason it is over size, I'm not sure what I was thinking. I might have been planning to put a tool tray on top of the lanterns. I keep Sears 220 style lanterns in it.



This 500 box is built in a more rustic style. All of my boxes use a hinge that has a rest built in so that the lid doesn't fall all the way back and break.





This very rustic box holds three 220's or two 220's and a gallon of fuel. It was slapped together with scrap lumber in a hurry before a campout. I also use it when I think I'm about to score some lanterns and need to bring them home without crashing into each other. It's pre-distressed so I don't have to worry about beating it up.

As someone said upthread, you just take a lantern, measure it and build something around it. You need to take into consideration the bail though, or you'll end up with something like my little green box above. I didn't even take the vent into consideration (duh!).

I made a box for a CQ lamp with metal shade because I used to take one camping. This time I actually put vertical boards around it to measure exactly what I'd need for the dimensions.


__________________
ICCC Petty Bureaucrat #CMLXII...
mgmlvks

Avatar / Picture

Mike -
Leavenworth

Registered: 04/28/12
Posts: 717
Reply with quote  #30
Forgot this nicely done one by others.


__________________
Mike, ICCC member #1156
"In order for the light to shine so brightly, the darkness must be present"
Francis Bacon
