I hope this is the right place for this topic. I was wondering if anyone had any plans or pics of Lantern Cases they have made.  I'm thinking of making some out of 1/2 inch plywood.  Any pics or suggestions would be appreciated.
ehodges

Blue Grass
Texan

Registered: 06/26/12
Posts: 3,910
Reply with quote  #2
I don't have a pic right now but the last one I made was from a section of 12 inch pvc pipe! Cut a round plug from a scap of plywood to fill the bottom and cut holes in the top where I could insert a piece of heavy wire to hold down the lantern inside! Nearly indestructible! Also made a wire bale carry handle!


__________________
Blue Grass Texan
275 Appreciation Syndicate #0022
Ed Hodges
Turd_Herder

Avatar / Picture

Turd Surgeon
Registered: 03/24/13
Posts: 1,545
Reply with quote  #3
1/2" plywood is going to be pretty heavy.  You can get away with much much lighter materials.

Here's the last one I made:



It's entirely too heavy to be a carrying case, but it does make a funny storage facility for the Coleman turd.  If it was me, I would look at 1/4" plywood, maybe smaller.  Especially if I had to carry it very far.

__________________
When asked about my poor performance in school, my teacher responded "You can't polish a turd".

Founding member of the Coleman 275 Appreciation Syndicate. Member #0001
fish

Avatar / Picture

I Am Me
Registered: 09/04/12
Posts: 1,523
Reply with quote  #4
Double duece how about a picture of the pipe carrier.
__________________
Patrick.
A learning experience is one of those things that say, ' You know that thing you just did? Don't do that' Douglas Adams
ehodges

Blue Grass
Texan

Registered: 06/26/12
Posts: 3,910
Reply with quote  #5
I'll try to get a pic of it tonight! Post it back here tomorrow!
__________________
Blue Grass Texan
275 Appreciation Syndicate #0022
Ed Hodges
campinut

Avatar / Picture

The Flashlight Man
Registered: 12/06/10
Posts: 3,046
Reply with quote  #6

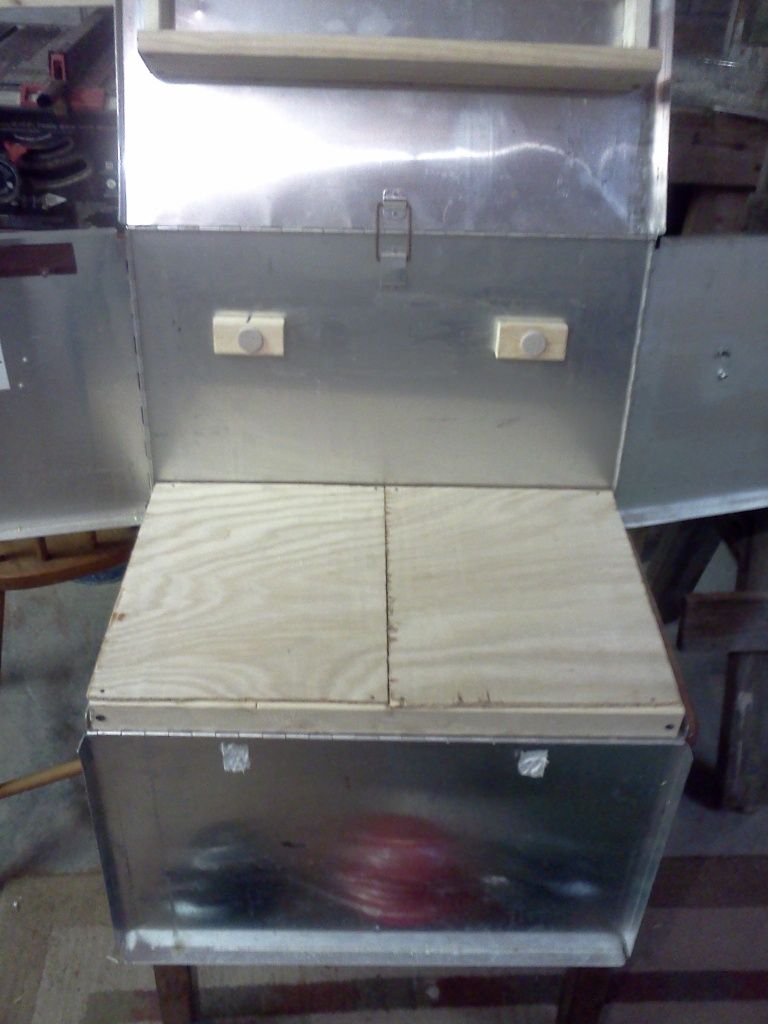

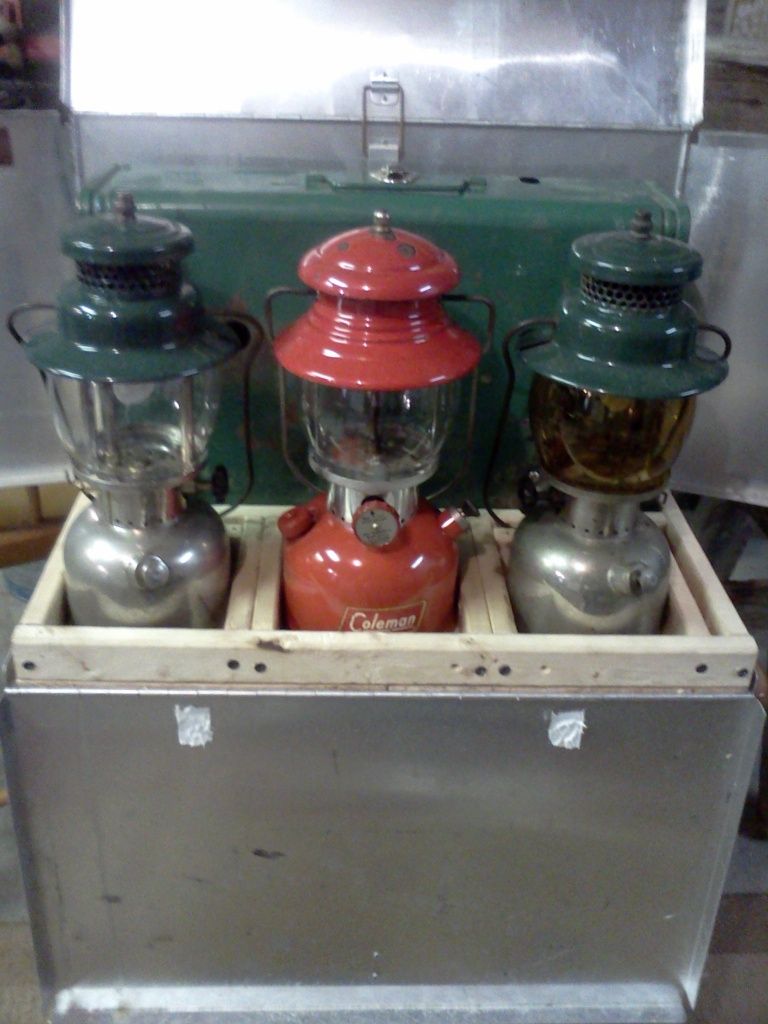

Although I have more than 10 factory cases (Clam shells, Coleman plastic, nylon zippered etc..) I find that making them is a blast and a life long connection to whatever it houses! That being said here is one of my latest ideas!....campinut....















Sorry for all the pic's but it would be hard to explain!....


__________________
Like a moth at night, I too, am attracted to the light!
Always looking for a 200A 7/1964
01sport4x

Senior Member
Registered: 01/09/13
Posts: 168
Reply with quote  #7

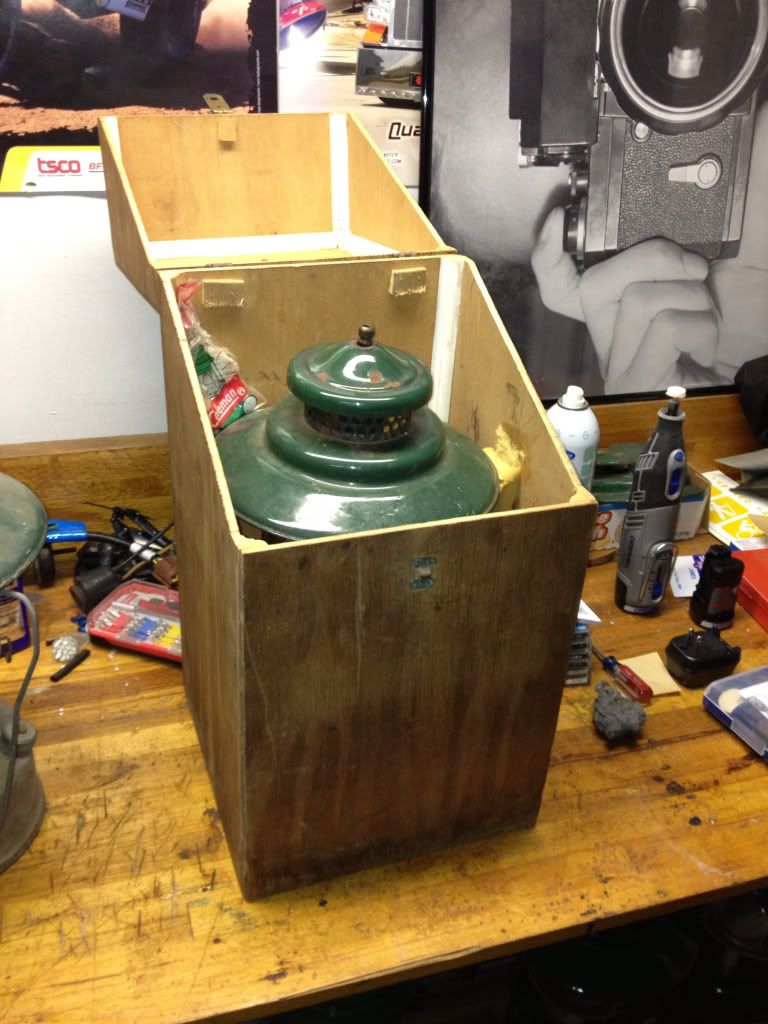

I've got this one that came with the lantern. Home made by the PO. I can dig it, not much cushion but a sturdy box.






__________________
-James
BDay lantern/stove/anything wanted 12/88
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #8
Quote:
Originally Posted by ehodges
I don't have a pic right now but the last one I made was from a section of 12 inch pvc pipe! Cut a round plug from a scap of plywood to fill the bottom and cut holes in the top where I could insert a piece of heavy wire to hold down the lantern inside! Nearly indestructible! Also made a wire bale carry handle!

Never thought of that...that would  be indestructible. Thanks for the idea!!
curlyjoe_99

Over
500 Posts!

Registered: 07/11/12
Posts: 3,831
Reply with quote  #9
right now, I cut up larger cardboard boxes to make a lantern box.
i have directions and can copy up later if someone wants them

__________________
Robert (AKA Curly)-- Heart-of-Texas! "Don't settle for a spark... Light a fire instead."
In Search of (ISO): evidence of a 220/228 series lantern dated 2/63 [please]
MILSPEC_OPS & 275 Appreciation Syndicate Member #9999
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #10
Some great ideas guys...!!  I know the 1/2 inch will be somewhat heavy, but not to bad I don't think.  Just plan on a short carry to the truck...boat...back to the garage... if you know what I mean.  I have some extra sheets of 1/2 already just collecting dust.
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #11
Quote:
Originally Posted by curlyjoe_99
right now, I cut up larger cardboard boxes to make a lantern box.
i have directions and can copy up later if someone wants them

Yes...please post.
curlyjoe_99

Over
500 Posts!

Registered: 07/11/12
Posts: 3,831
Reply with quote  #12

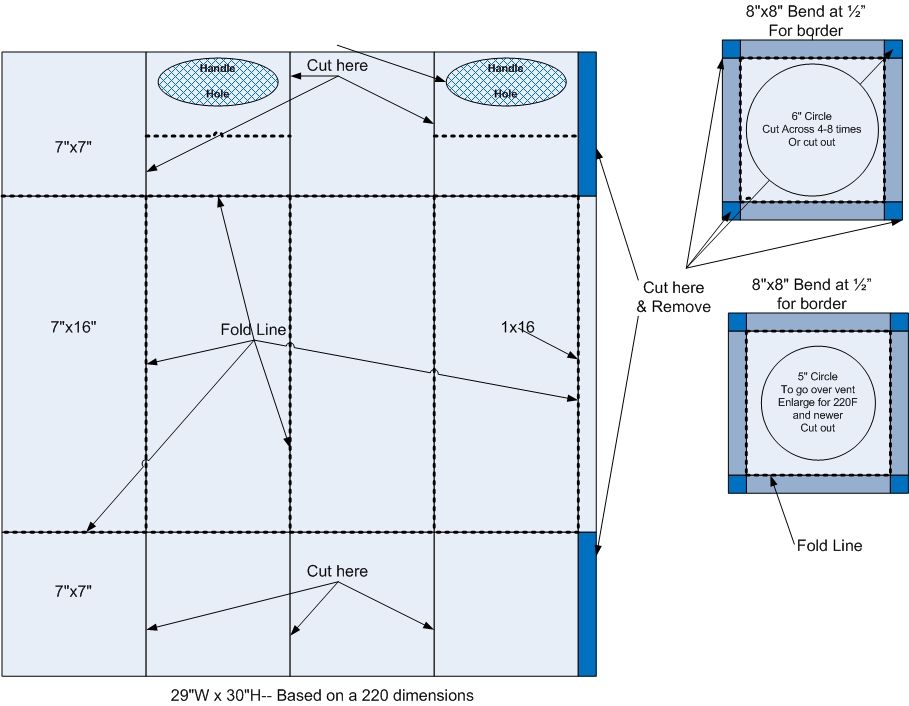

ok here's the pic:


To assemble: (fold), Crease the cardboard every 7" and at the last 1".
Cut the bottom 7" up every seven inches and trim the 1x7" strip on the end away.
Repeat along the top. If you want the handles, cut out the oval on opposite top pieces and fold the same top pieces 1/2way across.
Glue the one inch strip to the inside.
Fold the bottoms up and glue or tape.
Place lantern in and fold the top non cut pieces over the lantern and then the handle flaps last.
seal or clear coat like the old time suggestions or do what i prefer and just tape the bottom 1" and across the bottom with good packing tape and you have a mostly water proof carrier.

If you want inserts:.
Take two pieces and place one on top and bottom of the globe, trim to 1/2 larger diameter than the glass.
Take two more that are 8"x8" for this example. Place lantern on one and trace the outline of the fount. Next you will notch out a 1/2" square at each corner to allow the fold. Then pizza cut across the circle four to eight times. Fold so you have a 7" square with 1/2" on each end.  Place with fold down so you have a 1/2" raised platform and place lantern in. it will squish the pizza cut portion out to form a softer base just like they came from the factory


__________________
Robert (AKA Curly)-- Heart-of-Texas! "Don't settle for a spark... Light a fire instead."
In Search of (ISO): evidence of a 220/228 series lantern dated 2/63 [please]
MILSPEC_OPS & 275 Appreciation Syndicate Member #9999
kyron4

Over
500 Posts!

Registered: 02/20/11
Posts: 528
Reply with quote  #13
3/8" ply wood works well. This one I made is very utilitarian; the lantern can be put away and taken out while hot and the box doubles as a seat.



camper2009

New Poster
Registered: 03/03/13
Posts: 12
Reply with quote  #14

Lots of them here

http://colemancollectorsforum.websitetoolbox.com/post/Lantern-Boxes-6299174

G



Bluestar99

Senior Member
Registered: 05/07/11
Posts: 142
Reply with quote  #15
I modified a box I found in my Fathers business when we had an auction. The transom was missing. No need to let a good wood box go to waste.





mytmousemalibu

Avatar / Picture

Over
500 Posts!

Registered: 03/24/13
Posts: 579
Reply with quote  #16
Bluestar, that's really cool! very sharp, and sweet logo on the front!
__________________
,Chris

Kero-sane: One who has a rational affinity towards anything powered by kerosene.

Looking for B-day's 1/83, any 237, Turds (any), 501, mini's, other kero burners!
Coleman 275 Appreciation Syndicate #0009
Bluestar99

Senior Member
Registered: 05/07/11
Posts: 142
Reply with quote  #17
Thanks, that was my Dads company. He sold it and retired at the age of 83. One of the reasons to rescue the box and save the logo.
Dietz

Avatar / Picture

Senior Member
Registered: 05/21/12
Posts: 323
Reply with quote  #18
Made this one last year out of ½ plywood.


__________________
Yxaël

Looking for 7/2111/53 and 6/90 birthday lanterns.
816oldguy

Avatar / Picture

Over
500 Posts!

Registered: 02/03/13
Posts: 525
Reply with quote  #19
this is one that i made. still need to finish it.















__________________
Ray
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #20
Quote:
Originally Posted by Bluestar99
I modified a box I found in my Fathers business when we had an auction. The transom was missing. No need to let a good wood box go to waste.<br><br><br><br><br><br>


Nice!
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #21
Quote:
Originally Posted by 816oldguy
this is one that i made. still need to finish it.<br><br><div></div><div><br><br><div></div><div><br><br><div></div><div><br><br><div></div><div><br><br><div><br><br><br><div></div><div> </div></div><div> </div></div></div></div></div>

This is awesome...! Great job!!
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #22
Quote:
Originally Posted by Dietz
Made this one last year out of ½ plywood.<br><br><img rel="lightbox[1278008220]" src="http://imageshack.us/a/img171/2850/photo008xu.jpg" class="bbc_img">

I like this a lot! Did you paint the Coleman Nd sunrise?
Keith59

25+ Posts
Registered: 04/06/13
Posts: 81
Reply with quote  #23
Quote:
Originally Posted by campinut
Although I have more than 10 factory cases (Clam shells, Coleman plastic, nylon zippered etc..) I find that making them is a blast and a life long connection to whatever it houses! That being said here is one of my latest ideas!....campinut....<br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/002.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/021.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/018.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/020.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/023.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/024.jpg" class="bbc_img"><br><br><img rel="lightbox[1278008232]" src="http://i806.photobucket.com/albums/yy349/campinut/Coleman/012.jpg" class="bbc_img"><br><br>Sorry for all the pic's but it would be hard to explain!....<br><br>


This is neat!!!
Murff

 photo gdpit_com_96762789_394.gif
Administrator
Registered: 12/10/08
Posts: 8,762
Reply with quote  #24
275 Cases:





Murff

__________________
Name: Murff   ICCC Member #726   Coleman Blue's 243's #002   Ebay Handle: Happy-campers2



Gasman64

Avatar / Picture

Gaseous Maximus
Registered: 11/18/10
Posts: 11,037
Reply with quote  #25
I made these last year out of scrap pine boards:


The blue, closed cell foam is cut out from sleeping pads sold in the sporting goods/campind dept. of most big stores.  These cases will hold a 242, 243, 200A, 202, 288, 286, etc.

__________________
Steve
ICC #1012
curlyjoe_99

Over
500 Posts!

Registered: 07/11/12
Posts: 3,831
Reply with quote  #26
yea my cardboard boxes aren't in the same league as these
__________________
Robert (AKA Curly)-- Heart-of-Texas! "Don't settle for a spark... Light a fire instead."
In Search of (ISO): evidence of a 220/228 series lantern dated 2/63 [please]
MILSPEC_OPS & 275 Appreciation Syndicate Member #9999
backstrapfever

Avatar / Picture

White Gas Junky
Registered: 01/30/12
Posts: 1,698
Reply with quote  #27
i found an old apothecary box at an antique store it was too short for the 242 i keep in it so i cut the bottom off and made an extension and stained it as close as i could to the original finish i added the handle on to and the brass corners hope this helps





Dietz

Avatar / Picture

Senior Member
Registered: 05/21/12
Posts: 323
Reply with quote  #28
Quote:
Originally Posted by Keith59
Quote:
Originally Posted by Dietz
Made this one last year out of ½ plywood.<br><br><img rel="lightbox[1278017245]" src="http://imageshack.us/a/img171/2850/photo008xu.jpg" class="bbc_img">
I like this a lot! Did you paint the Coleman Nd sunrise?


I did, made a stencil by hand and spray painted red.

__________________
Yxaël

Looking for 7/2111/53 and 6/90 birthday lanterns.
mgmlvks

Avatar / Picture

Mike -
Leavenworth

Registered: 04/28/12
Posts: 715
Reply with quote  #29
Quote:
yea my cardboard boxes aren't in the same league as these
__________________
Curly


Curly - I think the cardboard boxes are inspired!  I will work on a few this weekend as I have a need for inexpensive carrier/case.  Do you have any pictures of nice finished ones?


__________________
Mike, ICCC member #1156
"In order for the light to shine so brightly, the darkness must be present"
Francis Bacon


nfadude

Avatar / Picture

Powered by
Isopar C

Registered: 06/29/12
Posts: 2,661
Reply with quote  #30
Here's mine







__________________

Looking for a 6-54 200a and 11-77 228j....Michael..theDude
jdburke

Senior Member
Registered: 01/25/12
Posts: 845
Reply with quote  #31
Another thread with boxes...

http://colemancollectorsforum.websitetoolbox.com/post/Lantern-boxes-6223010

I've made a couple from scrap pallets.  There are pictures of them in this ^^^^ link.
