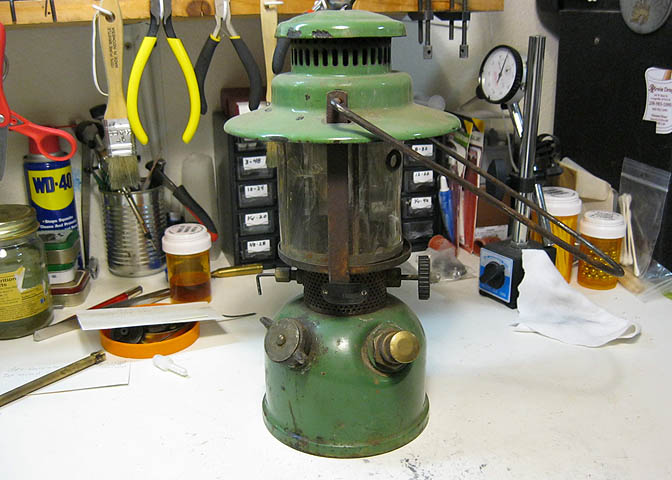

I got this one today at the local pawn shop/junk store.  $21 including tax.
From pictures I've seen around, I think it's a Preway Junior.  What do the folks here think?

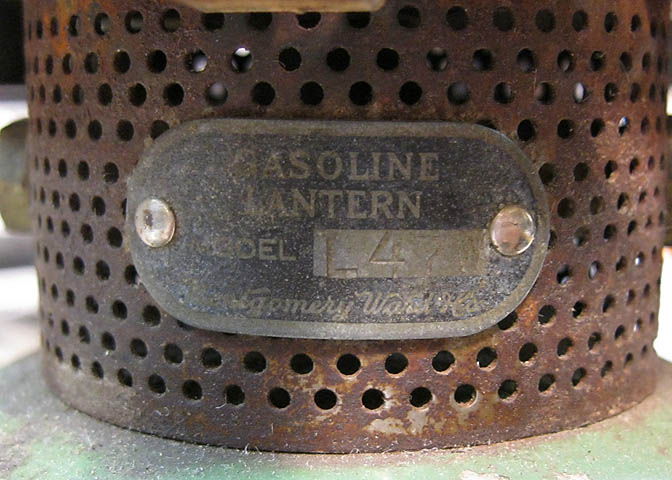

The tag says:
Gasoline Lantern
Model L47W
Montgomery Wards Co.











There's enough cast iron in that manifold thing to build a small boat anchor.

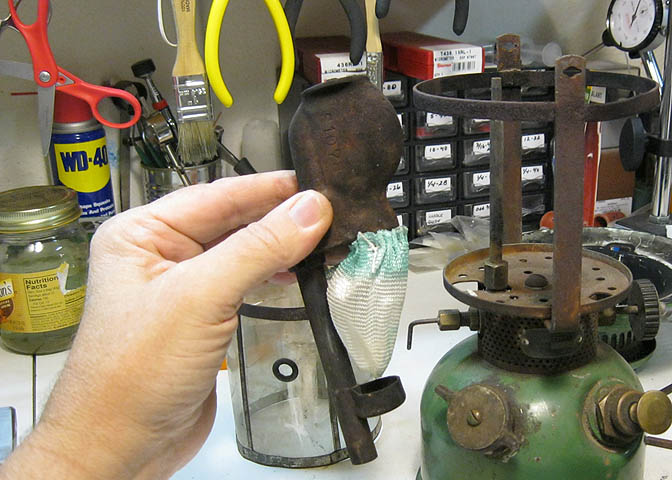

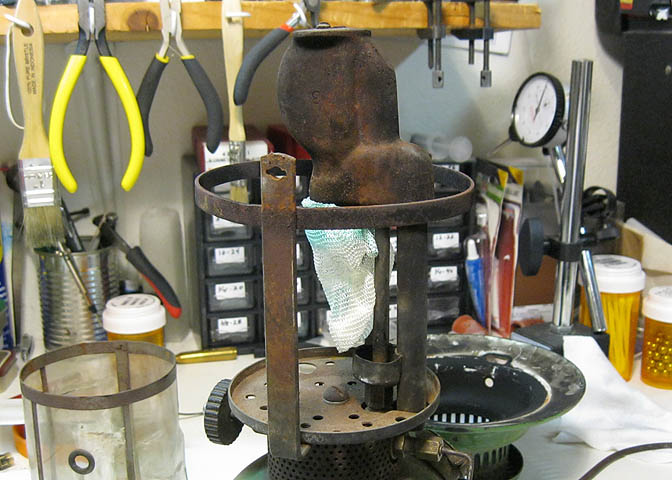

It has what looks like a preheat cup, but the cup holds no liquid.  Just has a hole in the bottom
that slides over the generator.

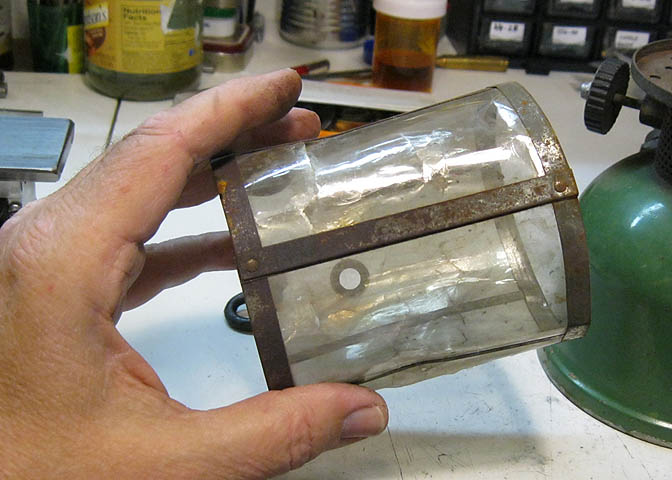

What is the name of the fellow who makes mica globes?  Does he make them this small?

Thanks for any comments!

Dean

__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
KevinJ

Avatar / Picture

Idaho Spud
Registered: 11/11/09
Posts: 1,513
Reply with quote  #2
I would hang onto that globe. I don't think those are easy to come by. I think you did good for 21 bucks.
__________________
ICCC # 1021
KevinJ
Kevin Jensen
campinut

Avatar / Picture

The Flashlight Man
Registered: 12/06/10
Posts: 3,206
Reply with quote  #3
Looks like a junior to me! I got the Big Hat version of yours. Fred Kuntz is probably the person you were referring to about the Mica globe, I am sure he can make one up if you e-mail him. Does yours lose any pressure when pumped? Does the pump handle raise after pressurized? That is the only problem I had on mine and it burns bright and long now after repairing the NRV pip. These lanterns are built like tanks and worth the $20 for sure....campinut.
__________________
Like a moth at night, I too, am attracted to the light!
Always looking for a 200A 7/1964
Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #4
Quote:
Originally Posted by campinut
Does yours lose any pressure when pumped? Does the pump handle raise after pressurized?

Don't know about those things, yet.  It needs some work before I can test it for various functions.
The pump leather is dried out.  Needs a soak in oil.  The valve is very stiff, and the pricker
lever is stuck fast.  Won't turn at all.
Just needs a tear down and some clean up and maintenance.

The same store has three table lamps.  One I know is a Coleman, but I can't identify the other two.
Some idiot turned one of the table lamps into an electric.  Drilled a hole through the fount.
The one unknown brand that is still in good shape is marked $20.  Will probably go for $15.

__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
Otto

Avatar / Picture

B'wana
Registered: 03/10/11
Posts: 489
Reply with quote  #5
Fred made one for me, and he has one to make it by.
__________________
Otto-Western Wisconsin Pressure Lighting Safaris
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #6
Quote:
Originally Posted by SteveRetherford
these are a bit more dificult to do a complete tear down to . the dirty coleman papers have a internal break down diagram so you can see inside so to speak . its helpfull as these dont work anything like a coleman .


Here ya go!

http://light.papo-art.com/tech-n-info/Coleman_technical/OldDirtyColemanPaper/PrentissWabersInstantValve.pdf
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #7
Do not try to take the fuel valve knob and stem off just by unscrewing the jam nut...it's much more complicated to that..you have to unscrew the assembly right at the valve assembly going into the fount...once you unscrew that, there's in inner assembly that has to be unscrewed...it's hard to describe...I'll try to take some pics of one this weekend.

Heres my Preway L47W with one of Fred's repro globes.



Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #8
Thank you for the info and links, folks!  Some very useful stuff there.
I bought this one simply because it was there, and unusual to a person who has only had
Coleman, Dietz, and Lenk kind of things.  The Preway is different enough to be interesting.

It will need some work.  The pump leather is about done for.  It will pump up some after soaking
in oil, but has many small splits and cracks.  The NRV is not NRV-ing.  The pump knob pushes
back out on it's own after pumping up the fount.  The gasket for the fill cap is leaking.  The graphite
packing for the pricker lever is nearly disintegrated.   It probably leaks, but I won't know until
I fix the filler cap gasket so the fount will hold pressure.

It will be a fun project when I get around to it.  The paint and enamel are pretty good.  Needs
some de-rusting on some of bare steel parts.  The writing on the filler and valve is gone.  Just
stuff to be done.

Does someone know the purpose of the thing that looks like a pre-heater cup?  It obviously
will not hold any fluid.  Just there for looks?

HR, yours looks quite nice!  Thanks for the pics.

Dean

__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #9
The thing that looks like a preheat cup is a preheat cup. I have three of them, one of them leaks so I preheat the genny with a torch.
JimDouglasJr

Avatar / Picture

King of Kamplite
Registered: 02/19/12
Posts: 12,603
Reply with quote  #10
That thing is cool.
__________________
Kyle. Kaptain Kamplite - America's Finest Lantern Fettler.
Coleman 275 Appreciation Syndicate and 243 Blues Member #0031 &  J.C. Higgins aficionado.
“If you light a lamp for someone else, it will also brighten your path.” Buddhist quote.  Brand-X Super Hoarder.
Accumulighter

New Poster
Registered: 07/07/12
Posts: 2
Reply with quote  #11
It looks like the center tube on your preheater cup is missing.  You can see the tube around the generator in HRydarcik's pic.  I got one recently with that part separated from the cup, but included.  It's just a tube with a small flange for attachment.  Apparently the solder or whatever can let go over time.
JimDouglasJr

Avatar / Picture

King of Kamplite
Registered: 02/19/12
Posts: 12,603
Reply with quote  #12
He'll whip up a new one in like 3 minutes.
We hate him!

__________________
Kyle. Kaptain Kamplite - America's Finest Lantern Fettler.
Coleman 275 Appreciation Syndicate and 243 Blues Member #0031 &  J.C. Higgins aficionado.
“If you light a lamp for someone else, it will also brighten your path.” Buddhist quote.  Brand-X Super Hoarder.
KevinJ

Avatar / Picture

Idaho Spud
Registered: 11/11/09
Posts: 1,513
Reply with quote  #13
That's pretty funny tho Steve.
__________________
ICCC # 1021
KevinJ
Kevin Jensen
MustXcape

Avatar / Picture

Open 1/4 Turn To Left
Hiss!
POOF!
Ahhh!

Registered: 04/07/11
Posts: 2,747
Reply with quote  #14
I love the special effects! Never had that happen, but weird things occur when you cut and past someone's user name into a post. I usually pre post to notepad so I am sure I strip all codes from the text. If you delete the name it might post correctly.
__________________
I can stop collecting anytime. I just don't want to.... Soooo.... How much do you want for that?
Gasman64

Avatar / Picture

Gaseous Maximus
Registered: 11/18/10
Posts: 11,037
Reply with quote  #15
Great find at a great deal, Dean; I wouldn't mind having one of those myself.
__________________
Steve
ICC #1012
Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #16
1                    What happened to this thread?  There are words stringing
                      vertically all the way from Steve's post to the bottom of
                      the page.  They go over everyone else's posts.  Is
                       something  goofy, or is it just my eyes?

__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
SteveRetherford

Avatar / Picture

Dr. Coleman™
Registered: 12/11/08
Posts: 16,014
Reply with quote  #17
i only see it in my post . im just deleted all my post does that help ?
__________________
  Steve , Keeper of the Light !!!
Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #18
Yeah, it's gone now, Steve.  But I hate to loose all your posts!
Thanks for the fix.

Didn't anyone else see that?

__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #19
gremlins
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #20
OK...I took a few pics of how to get the fuel valve stem away from the F/A valve assembly....

First this is how it looks before dis-assembly...



Then using a 1/2 wrench you loosen the 'nut' closest to the valve assembly...



When you get that loose you'll notice another threaded section inside of it...that section is flatted on 2 sides to accept a 5/16" wrench...Sometimes that outer section, even when unscrewed doesn't pull away from the inner section...I use a 7/16" wrench to gently pry it open enough so the inner section will accept my 5/16" wrench...



Unscrew the inner section and the fuel stem comes right out...





It's a completely different beast than a Coleman.

campmaster

Avatar / Picture

Mr. 3 Burner
Registered: 01/29/11
Posts: 5,361
Reply with quote  #21
Yeah and then try and get that valve OUT of the font... you will likely snap the valve off. Id leave it alone.
 use berrymans as your friend.
 I put nearly 100 lbs of force on mine and split the valve, just trying to get it out.
 I have some of the best penetrating oils and the best tools money can buy, best techniques to back all that stuff up.... and i nearly ruined mine.
 It works now but it took a lot of love to get it dialed.
 I dont know why but preway CRANKED everything they made to 3 times too tight.

__________________
ICCC Member #1045
HRydarcik

Over
500 Posts!

Registered: 11/04/10
Posts: 2,144
Reply with quote  #22
Quote:
Originally Posted by campmaster
Yeah and then try and get that valve OUT of the font... you will likely snap the valve off. Id leave it alone.
 use berrymans as your friend.
 I put nearly 100 lbs of force on mine and split the valve, just trying to get it out.
 I have some of the best penetrating oils and the best tools money can buy, best techniques to back all that stuff up.... and i nearly ruined mine.
 It works now but it took a lot of love to get it dialed.
 I dont know why but preway CRANKED everything they made to 3 times too tight.


I have 6 Preways and I've been able to get the valve out of all of them by using a 10' crescent wrench and holding it on the carpeted floor with my knees.
Kevin

ICCC#896
Registered: 12/13/08
Posts: 3,621
Reply with quote  #23
Hoddy, thanks for those clear pictures. I'll be doing one of these shortly and your posts will probably save me some grief.
deepcrete6

The Colemaniac
Registered: 12/31/10
Posts: 4,254
Reply with quote  #24
those are great pics thanks
__________________
thanks, Jerry
*I saw weird stuff in that place last night-weird,strange,sick,twisted,eerie,godless stuff....and I want in -Homer J. Simpson
*if you dont like your job,you dont strike!,you just go in everyday and do it really half assed....thats the american way -Homer J. Simpson
*a computer once beat me at a game of chess, but it was no match for me in kick boxing
mcdugal2

Super Poster
Registered: 05/01/10
Posts: 3,456
Reply with quote  #25
I have some pics of the pump assembly pulled out and apart (the nrv end) pics from an L43S but the pump is the same...




The L47 has the same air-tube system as the L43 so you aren't pumping directly into fuel... Fred made the globe for my PreWay Jr. without the hole because there is a lighting hole in the bottom of the frame. if you use CF in this lantern you do not need to pre heat. If you do not get a mixture of air and fuel when you open the valve then the air orifice on the valve inside the tank is plugged and needs to be cleaned.. It also has a screen at the bottom of the pickup tube that can become clogged... there is a metering orifice inside the tube so don't ram anything through it...

__________________
Phil Rhoades ICCC# 1125
The Coleman Blue's 243's. #035

"I'm a man, but I can Change, if I have to, I guess." - Red Green
Flat_twin

Avatar / Picture

Super Poster
Registered: 02/23/12
Posts: 3,183
Reply with quote  #26
Good one!  I think the Montgomery Wards version is harder to find than a Sears or Preway Jr tagged variety.


Fred can fix you up with a proper fuel cap gasket too.  I'll be ordering one of his globes for this lantern soon.

__________________
Mark
__________________________________________
Deanofid

Midnight KeroseneRitualist
Registered: 07/30/12
Posts: 5,260
Reply with quote  #27
Thanks much for the further instruction and commentary, fellows!  Lots of good info to help out here.
__________________
Dean - <a href="http://www.deansphotographica.com/machining/projects/projects.html>Machine Shop Projects</a>
ICCC #1220. Turd-anon #18

Merry Christmas! Merry Christmas!
logjammin

Imported
From Detroit

Registered: 11/30/10
Posts: 2,189
Reply with quote  #28
Thanks for this thread fellas
I actually found it through a google search .lol

__________________
Mark
stevesix

Senior Member
Registered: 06/10/12
Posts: 343
Reply with quote  #29
i have the L14a those little juniors are rock solid lanternsPicture0042.jpg

__________________
theres plenty of light when the gas is white. steve steven stephen
JimDouglasJr

Avatar / Picture

King of Kamplite
Registered: 02/19/12
Posts: 12,603
Reply with quote  #30
The air/fuel thing is also different. Opening the valve to its stop is where the air is cut off.
This is probably why the valve is different. Something to do with that.

I don't think they were self-branding as Preway this early.

I have 2 of these.  Great little runners. Super bright.  I was able to revive the cork fuel gasket on both and neetsfoot oil revived the pips.
The other has an O ring for a fuel seal.

__________________
Kyle. Kaptain Kamplite - America's Finest Lantern Fettler.
Coleman 275 Appreciation Syndicate and 243 Blues Member #0031 &  J.C. Higgins aficionado.
“If you light a lamp for someone else, it will also brighten your path.” Buddhist quote.  Brand-X Super Hoarder.
Dmacp

Senior Member
Registered: 12/11/08
Posts: 2,422
Reply with quote  #31
Each of the stamped labels on the collar is different, depending on which retailer sold the lantern. Sears was a diamond, I think Preway used an oval label also, just slightly different from Wards. These were meant to burn gasoline or kerosene. Mine does OK with a 200A generator, a 201 would probably work well too.

The larger 2 mantle Preway has a machined nut soldered (and screwed) into the fount, which accepts the valve. When twisting the valve out of those the solder lets go and the whole nut spins. No fun. Yes I agree-they put them in too tight. However they had a different set of priorities. They may not have wanted people taking them apart.
